| [ Features ] |
|

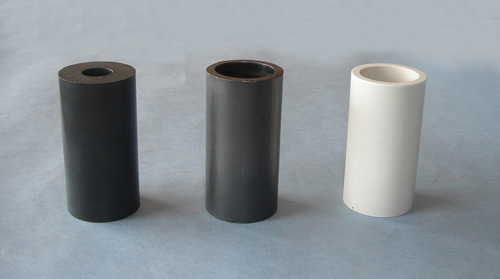

Filled PTFE article is manufactured by moding method with filled PTFE resin. Filled PTFE resin is manufactured by compounding PTFE granular resin with fillers of many differents kinds. Amongst the many fillers suitable for compounding with PTFE, glass fiber, carbon fiber, Bronze and also lubricating materials like graphite, molybdenum disulphide, have been widely used in large scale production, Broadly speaking PTFE compounds have the following advantage over unfilled.
|
| PTFE. |
Improved compression strength |
| |
Improved thermal conductivity |
| |
Dereased thermal expansioin |
| |
Improved abrasion resistance |
|
|
| |
| [ Specifications ] |
|
outside diameter ／Inside diameter ×High
(mm) |
outside diameter ／Inside diameter ×High
(mm) |
outside diameter ／Inside diameter ×High
(mm) |
outside diameter ／Inside diameter ×High
(mm) |
|
15/10×40 |
71/55×90 |
115/65×100 |
170/100×100 |
|
30/19×70 |
75/42×150 |
115/75×100 |
172/135×50 |
|
36/24×50 |
77/55×100 |
117/80×110 |
172/145×115 |
|
40/18×100 |
79/65×80 |
120/98×70 |
187/159×70 |
|
40/20×100 |
83/30×100 |
122/102×60 |
205/162×90 |
|
42/25×100 |
83/60×100 |
125/60×100 |
213/189×100 |
|
48/36×100 |
84/53×70 |
125/80×85 |
220/170×40 |
|
49/39×50 |
64/60×100 |
127/86×100 |
229/185×70 |
|
50/28×100 |
90/68×100 |
129/112×62 |
250/214×100 |
|
57/40×50 |
93/60×100 |
135/92×65 |
284/250×95 |
|
60/30×50 |
93/65×100 |
140/100×100 |
290/240×120 |
|
64/30×50 |
100/60×100 |
141/112×100 |
304/364×50 |
|
66/45×50 |
100/65×100 |
142/112×100 |
325/285×100 |
|
66/51×50 |
100/75×100 |
148/118×100 |
390/354×120 |
|
66/55×50 |
100/84×50 |
150/110×100 |
395/355×50 |
|
68/42×60 |
102/65×100 |
160/130×65 |
516/468×80 |
|
69/42×100 |
107/65×100 |
162/126×100 |
578/530×90 |
|
70/45×50 |
110/50×70 |
164/137×62 |
|
|
|
110/65×125 |
164/124×60 |
| |
| [ Main properties ] |
|
Produc No. |
Filled compound and Content by wt |
Tensie strength MPa(min) |
Ultimate strength %(min) |
Compresive strength MPa(min) |
|
1 |
20% glass fiber |
10 |
120 |
16 |
|
2 |
25% glass fiber |
10 |
100 |
16 |
|
3 |
20% glass fiber 5% graphile |
10 |
120 |
16 |
|
4 |
60% Bronze |
10 |
80 |
20 |
|
5 |
15% carbon fiber |
11 |
130 |
16 |
|
6 |
24% Bronze 12% glass fiber 6% graphile |
9 |
100 |
16 |
|
7 |
15% glass fiber 10% Polyikmide 5% graphile |
10 |
120 |
16.7 | |

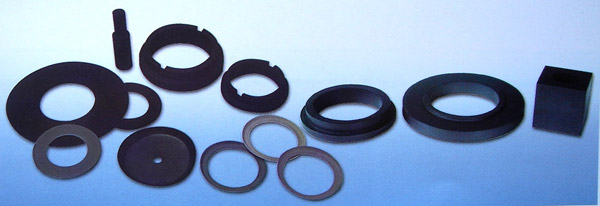

| [ Application of filled PTFE ] |
|
Application |
Necessary proerties |
Suggested grades of filled PTFE |
|
Gaskets |
Creep resistance, chemical resistance |
#1 #2 #3 #5 |
|
Valve seas |
Creep resistance, Lowfriction, chemical resistance |
#1 #2 #3 #5 |
|
Packings |
Creep resistance, Lowfriction, Low wear, chemical resistance, stiffness |
#1 #3 #5 #7 |
|
Bearings |
Low wear, Lowfriction、Creep resistance |
#1 #4 #5 #6 |
|
Bearing Pads |
Creep resistance, Lowfriction, resistant to weathering |
#3 |
|
Piston rings |
Creep resistance, Lowfriction，chemical resistance, stiffness |
#1 #2 #3 #5 | |
| |
|
|
